bonnet seals
High-pressure valve designs use bonnet seals in a triangular shape instead of a sheet gasket because of the extreme pressure put on the bonnet bolts. This design uses the actual line pressure to assist in creating the bonnet seal. One major flaw in this approach is that the metal bonnet seals tend to stick to the valve body and require excessive force to remove, often causing damage to the valve and seal.
Chesterton’s 5900 Graphite Bonnet Seal addresses these issues. It conforms to worn surfaces and can solve safety and maintenance issues.

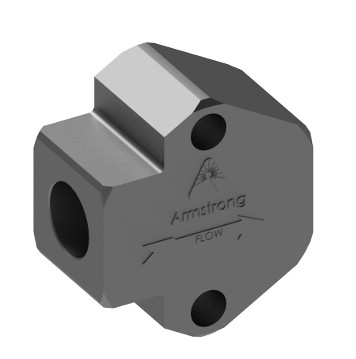

360° STAINLESS STEEL CONNECTOR
Standard 360° Stainless Steel Connector Provides:
- A compact, lightweight assembly
- Standardization, reducing inventory
- A compact design, simplifying piping
- Accommodates Armstrong’s inverted bucket, disc, thermostatic, thermostatic wafer and bimetallic steam traps. Any manufacturer’s 2-bolt steam trap can also be applied to Armstrong’s standard connector.
Maximum Operating Conditions
Maximum allowable pressure:
- 830 psig (57.2 barg) @ 800°F (427°C)
- 1400 psig (96.5 barg) @ 100°F (38°C)
- Refer to Trap Specifications for further operating conditions
Connector Style
- Standard 360 Degrees
Materials Specification
Connection Types
- Screwed NPT and BSPT
- Socketweld
- Flanged (consult factory)CD4080
